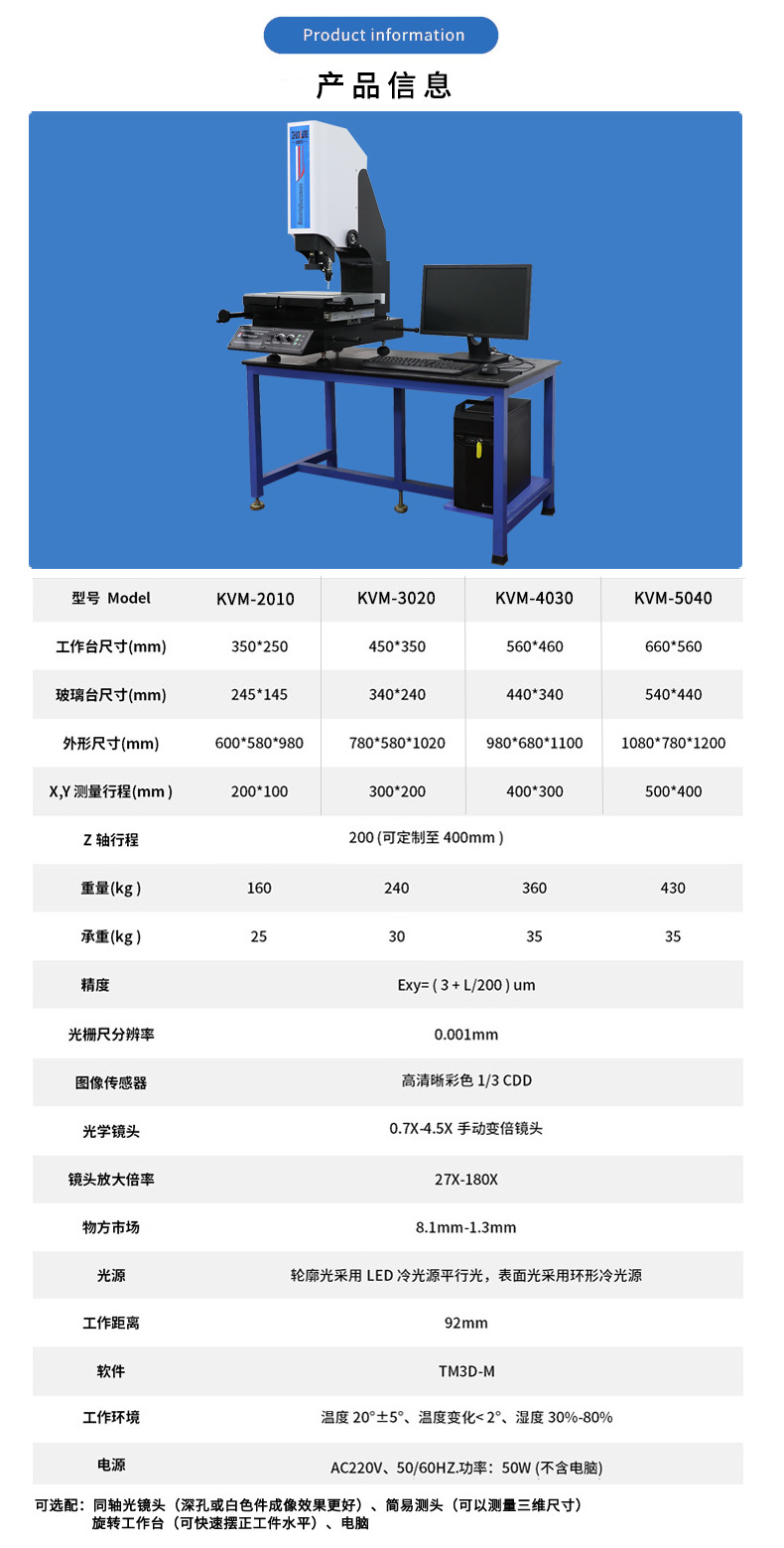

| 型號 Model | KVM-2010 | KVM-3020 | KVM-4030 | KVM-5040 | ||||||||
| 工作台尺寸 Worktable Size(mm) | 350*250 | 450*350 | 560*460 | 660*560 | ||||||||
| 玻璃台尺寸 Glass table size(mm) | 245*145 | 340*240 | 440*340 | 540*440 | ||||||||
| 外形尺寸 Shape Size(mm) | 600*580*980 | 780*580*1020 | 980*680*1100 | 1080*780*1200 | ||||||||
| X,Y測量行程(mm ) X, Y measurement stroke(mm) | 200*100 | 300*200 | 400*300 | 500*400 | ||||||||
| z軸行程 Z axis stroke | 200 (可定製至400mm ) 200(customizable to 400mm) | |||||||||||
| 重量(kg ) Weight(kg) | 160 | 240 | 360 | 430 | ||||||||
| 承重(kg ) Load(kg) | 25 | 30 | 35 | 35 | ||||||||
| 精度 precision | Exy= ( 3 + L/200 ) um | |||||||||||
| 光柵尺分辨率 Grid ruler resolution | 0.001mm | |||||||||||
| 圖像傳感器 Image sensor | 高清晰彩色1/3 CDD High clarity color 1/3 CDD | |||||||||||
| 光學鏡頭 Optical lens | 0.7X-4.5X手動變倍鏡頭 0.7X-4 .5 X Manual doubling lens | |||||||||||
| 鏡頭放大賠率 Lens magnification odds | 27X-180X | |||||||||||
| 物方市場 Property Market | 8.1mm-1.3mm | |||||||||||
| 光源 light source | 輪廓光采用LED冷光源平行光，表麵光采用環形冷光源 The outline light uses LED cold light source parallel light, and the surface light uses circular cold light source | |||||||||||
| 工作距離 Working distance | 92mm | |||||||||||
| 軟件 software | ZK3D | |||||||||||
| 工作環境 work environment | 溫度20°±5°.溫度變化濕度30%-80% Temperature 20 °± 5 temperature change, 2 °, humidity 30 % -80 % | |||||||||||
| 電源 power supply | AC220V. 50/60HZ.功率：50W (不含電腦) AC220V, 50/60H乙 power: 50W(excluding computers) | |||||||||||
